O'SKOOL Router Lift Systems for 3-1/2" Diameter Motors, 9-1/4'' x 11-3/4'' Plate 5-Piece Insert Ring Kit
$225.00

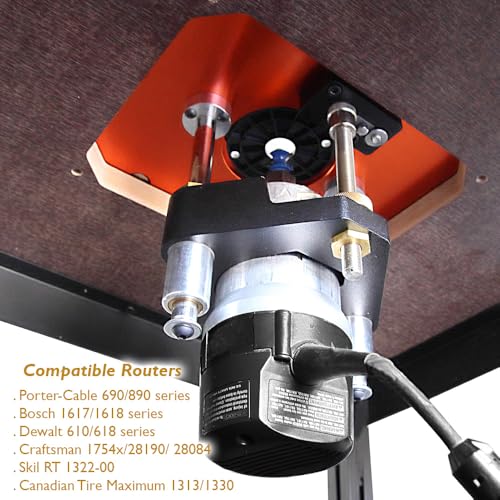

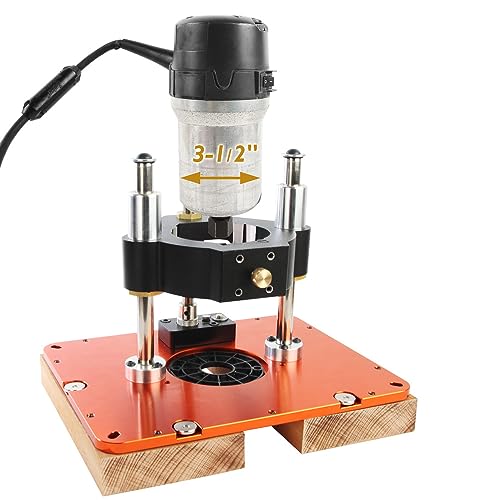

- This router lift features a 3.5" diameter carriage and is compatible with popular 3-1/2” router models such as Porter Cable 690 / 890, DeWalt 610 / 616/ 618, Bosch 1617 / 1618, and Craftsman 1754X / 28190 / 28084, Skil RT1322-00, ensuring versatility and ease of use. The insert plate size is 11-3/4" X 9-1/4" accommodating most of commercial router tables available in the market

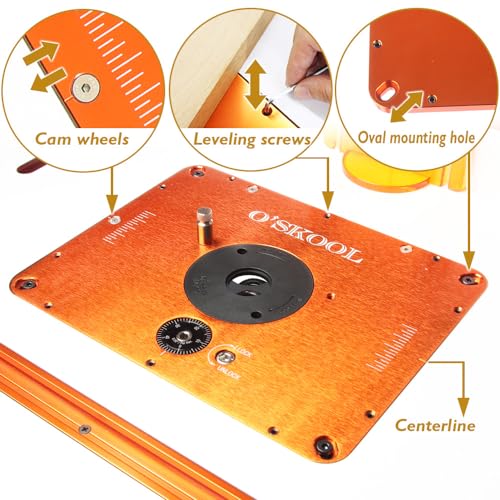

- Crafted from CNC machined 3/8” solid aluminum, the insert plate boasts exceptional flatness. It incorporates 10 set screws for precise leveling adjustments. Additionally, the inclusion of 3 locking cam wheels eliminates any gaps in the router table opening, guaranteeing consistent mounting position during every installation
- With a height adjustability range of 3 inches, this router lift allows you to effortlessly change router bits without the need to remove the router from the carriage, saving you time and effort
- The height adjustment screw has a pitch of 20 teeth per inch, meaning that each revolution adjusts the height by 0.05 inches. The inclusion of a zeroing index ring with a 50-angle scale allows for precise control, enabling adjustments as small as 1/1000 of an inch. Additionally, the height screw locking device prevents any minimal movement caused by router vibrations, ensuring consistent cutting depth throughout your work

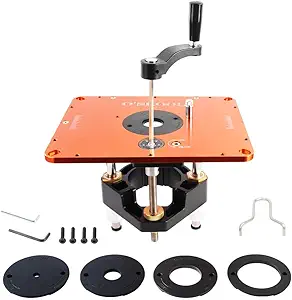

- Included with this router lift are 5 insert rings, offering optimal stock support for the use of various sizes of router bits. The sizes of the insert rings include 3/8", 1", 1-1/4" (compatible with guide bushings), 1-7/8", and 2-5/8", coping with to your diverse routing needs
